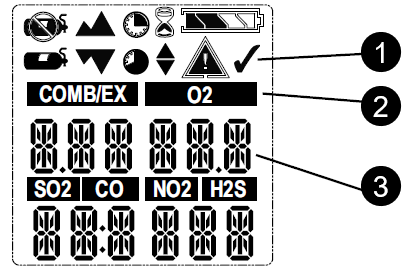

Alarm Symbol – Indicates alarm state.

Motion AlertTM – Indicates Motion Alert is active.

Bump Check Symbol – Indicates successful bump or cal.

Indicates required interaction.

Battery Condition – Indicates the battery charge level.

Sensor Labels.

Cal Gas Cylinder – Indicates cal gas must be applied.

No Gas Cylinder – Indicates cal gas should not be applied and device must be exposed to fresh air.

Hourglass – Indicates user should wait.

Minimum – Indicates a minimum value or low alarm.

PEAK Symbol – Indicates a PEAK reading or high alarm.

STEL Symbol – Indicates a STEL alarm.

TWA Symbol – Indicates a TWA alarm.
