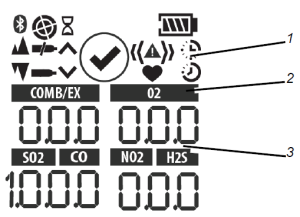

Alarm Symbol – Indicates alarm state

Motion Alert – Indicates Motion Alert is active

Bump Check Symbol – Indicates successful bump or cal

Indicates required interaction

Battery Condition – Indicates the battery charge level

Sensor Labels

Calibration Setup

Cal Gas Cylinder – Indicates cal gas must be applied

No Gas Cylinder – Indicates cal gas should not be applied and device must be exposed to fresh air.

Hourglass – Indicates user should wait

Minimum – Indicates a minimum value or low alarm

PEAK Symbol – Indicates a PEAK reading or high alarm

STEL Symbol – Indicates a STEL alarm

TWA Symbol – Indicates a TWA alarm

Sensor life Symbol – Indicates the end of sensor life
