Overview
Device Management with Grid
Device management is done entirely through your included MSA Grid account, over-the-air via the device's cellular connection. To get started, please set up your account and download the Grid Mobile App from the App Store or Google Play Store.
In the Box
|
•
|
ALTAIR io 4 Gas Detection Wearable |
|
•
|
Quick-Start Guide with Certifications |

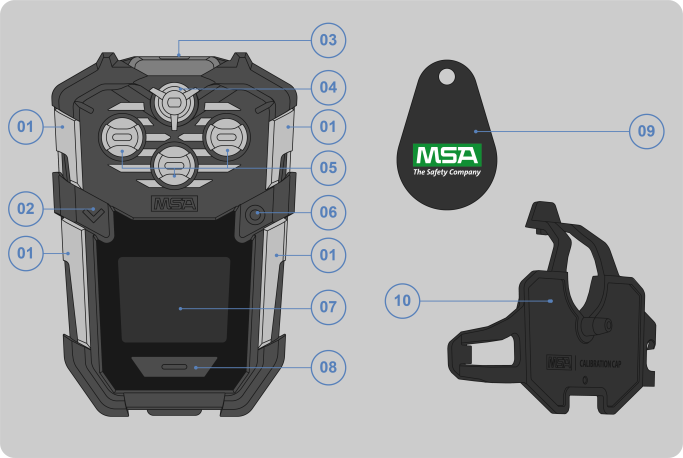

Hardware Overview
| 01 |
Left and Right LEDs |
06 |
Right Navigation Button |
| 02 |
Left Navigation Button |
07 |
LCD Display |
| 03 |
Safe LED |
08 |
Alert Button |
| 04 |
Audible Horn |
09 |
MSA id Tag |
| 05 |
Sensor Inlets |
10 |
Calibration Clip |

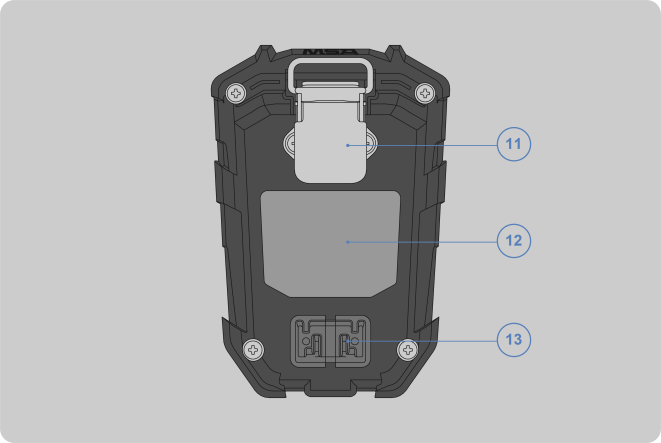

| 11 |
Stainless Steel Clip |
| 12 |
Product Label |
| 13 |
Magnetic Charging Interface |

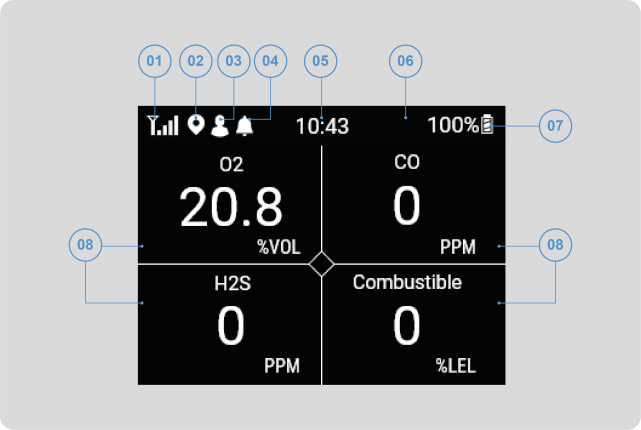

Home Screen
| 01 |
Cellular Connection |
05 |
Time |
| 02 |
GPS Location |
06 |
Status Bar |
| 03 |
Device Assigned |
07 |
Battery Life |
| 04 |
Notification |
08 |
Gas Measurement Tiles |
