Gas Configuration

Use the "Gas" option to change the gas configuration settings.

NOTE: Except for the buttons that show in the screen headers, the screens and steps used to change the gas configuration settings are the same as those used during the initial setup.

During the initial setup, the screen headers show the and buttons. During routine operation, the screen headers show the , , and buttons.

When a change is made to the configuration, the "Save" button becomes active.
1. On the "Settings" screen, select "Gas".

2. On the "Gas" screen, select the applicable gas tile.
3. Do one of the following:
a. To change the gas configuration settings, go to Gas Configuration, and do Steps (2) through (13).
b.   To clear or delete a configured gas, go to Step (1) in the "Reset" Tab section below.

While the configuration is being updated, a "Busy" message shows at the bottom of the "Configure Gas" screen.

If the or button is selected while the "Busy" message shows, a pop-up asks whether to abandon the configuration changes.

• To return to the "Gas" screen without saving the configuration changes, select "Return without Saving".
• To save the configuration changes and return to the "Configure Gas" screen, select "Save and Return".

When the configuration changes have been saved, the "Settings" screen shows.

"Reset" Tab

Use the "Reset" tab to clear or delete a gas slot.
1. On the "Configure Gas" screen, select the "Reset" tab.
2. Do one of the following:
a. To return to the default settings for the currently selected gas, select "Clear".
b.   To remove the gas slot completely, select "Delete".

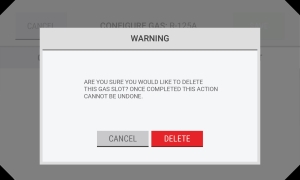

3. On the warning pop-up, do one of the following:
a. To cancel the Delete function, select "Cancel".
b.   To continue with the Delete function, select “Delete”.

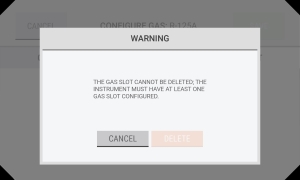

NOTE: If only one gas slot is configured, it cannot be deleted. At least one gas slot must be configured for the system to function. If an attempt is made to delete the only configured gas slot, a warning pop-up indicates that the action cannot be completed.

Select "Cancel" to return to the "Configure Gas" screen.

When the configuration changes have been saved, the "Settings" screen shows.
