Wiring and Grounding

The Chillgard Wiring Diagram (Figure 12 ) gives the details of the wiring requirements for the device.

WARNING!

Make sure the device chassis is connected to the earth ground at the ground bar.

Failure to follow this warning can result in serious personal injury or death.

Notice

Installations that require conformity to the European EMC and LDV regulation must have a connection between the Chillgard 5000 device and a nearby earth ground potential.

To achieve this connection, install a 10 AWG or larger copper wire between the grounding lug terminal strip on the right side of the Chillgard 5000 device and the grounding point (protective earth). The wire length cannot be longer than 6 ft (2 m).

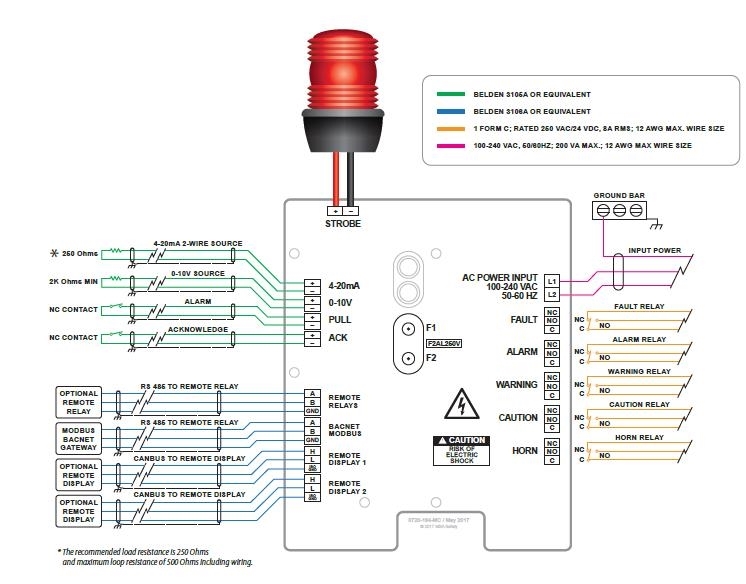

Figure 12 Chillgard Wiring Diagram
