Switch Selectable Options
All settings on the FL5000 are selected via a dipswitch on the Power/Relay board or via Modbus (overrides switch settings).
To set these options:
| 1. | Remove the detector head from the Base Assembly and locate the dipswitch per the Dipswitch Location figure in Time Delay Settings |
| 2. | On the dipswitch, ON/CLOSED means the switch is pushed in on the side labeled ON or CLOSED (opposite the OPEN side). |
| 3. | OFF/OPEN means the switch is pushed in on the side with the number corresponding to the switch position or the side labeled OPEN – refer to Time Delay Settings for dipswitch assignments. |
The settings for the INSTANT ALARM and SUSTAINED ALARM outputs are covered in Terminal Connections.

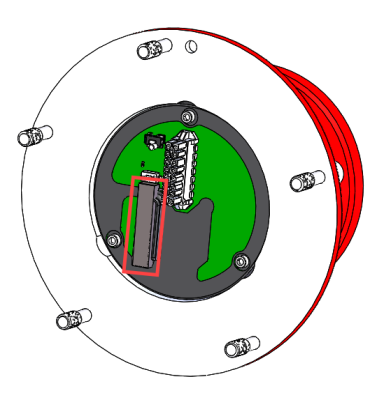

Figure 19 Dipswitch Location
|
Position |
||||||||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |
| High Sensitivity | OFF | OFF | - | - | - | - | - | - | - | - | - | - |
| Medium Sensitivity | ON | OFF | - | - | - | - | - | - | - | - | - | - |
| Low Sensitivity | OFF | ON | - | - | - | - | - | - | - | - | - | - |
| 0 Sec Alarm Time Delay | - | - | ON | ON | - | - | - | - | - | - | - | - |
| 8 Sec Alarm Time Delay | - | - | OFF | ON | - | - | - | - | - | - | - | - |
| 10 Sec Alarm Time Delay | - | - | OFF | OFF | - | - | - | - | - | - | - | - |
| 14 Sec Alarm Time Delay | - | - | ON | OFF | - | - | - | - | - | - | - | - |
| Sustained Alarm Non-Latching | - | - | - | - | OFF | - | - | - | - | - | - | - |
| Sustained Alarm Latching | - | - | - | - | ON | - | - | - | - | - | - | - |
| Instant Alarm Non-Latching | - | - | - | - | - | OFF | - | - | - | - | - | - |
| Instant Alarm Latching | - | - | - | - | - | ON | - | - | - | - | - | - |
| Sustained Alarm Normal De-Energized | - | - | - | - | - | - | OFF | - | - | - | - | - |
| Sustained Alarm Normal Energized | - | - | - | - | - | - | ON | - | - | - | - | - |
| Instant Alarm Normal De-Energized | - | - | - | - | - | - | - | OFF | - | - | - | - |
| Instant Alarm Normal Energized | - | - | - | - | - | - | - | ON | - | - | - | - |
| LEDs - Standard Mode | - | - | - | - | - | - | - | - | OFF | - | - | - |
| LEDs - Alternate PEMEX Mode | - | - | - | - | - | - | - | - | ON | - | - | - |
| HART Enabled | - | - | - | - | - | - | - | - | - | OFF | - | - |
| HART Disabled | - | - | - | - | - | - | - | - | - | ON | - | - |
| Window Heater Disabled | - | - | - | - | - | - | - | - | - | - | OFF | - |
| Window Heater Enabled | - | - | - | - | - | - | - | - | - | - | ON | - |
| Test Lamp AO Mode Disabled | - | - | - | - | - | - | - | - | - | - | - | OFF |
| Test Lamp AO Mode Enabled | - | - | - | - | - | - | - | - | - | - | - | ON |
| BLE Enabled | ON |
| BLE Disabled | OFF |
| AO Sink | Sink |
| AO Source | Source |
Default configuration of the FL5000 is Medium Sensitivity, 8 second time delay, Sustained Alarm Non Latching, Instant Alarm Non Latching, Sustained Alarm Deenergized, Instant Alarm deenergized, LEDs Standard Mode, HART Enabled, Window Heater Disabled, Test Lamp AO mode Disabled, BLE Enabled.
