Final Assembly

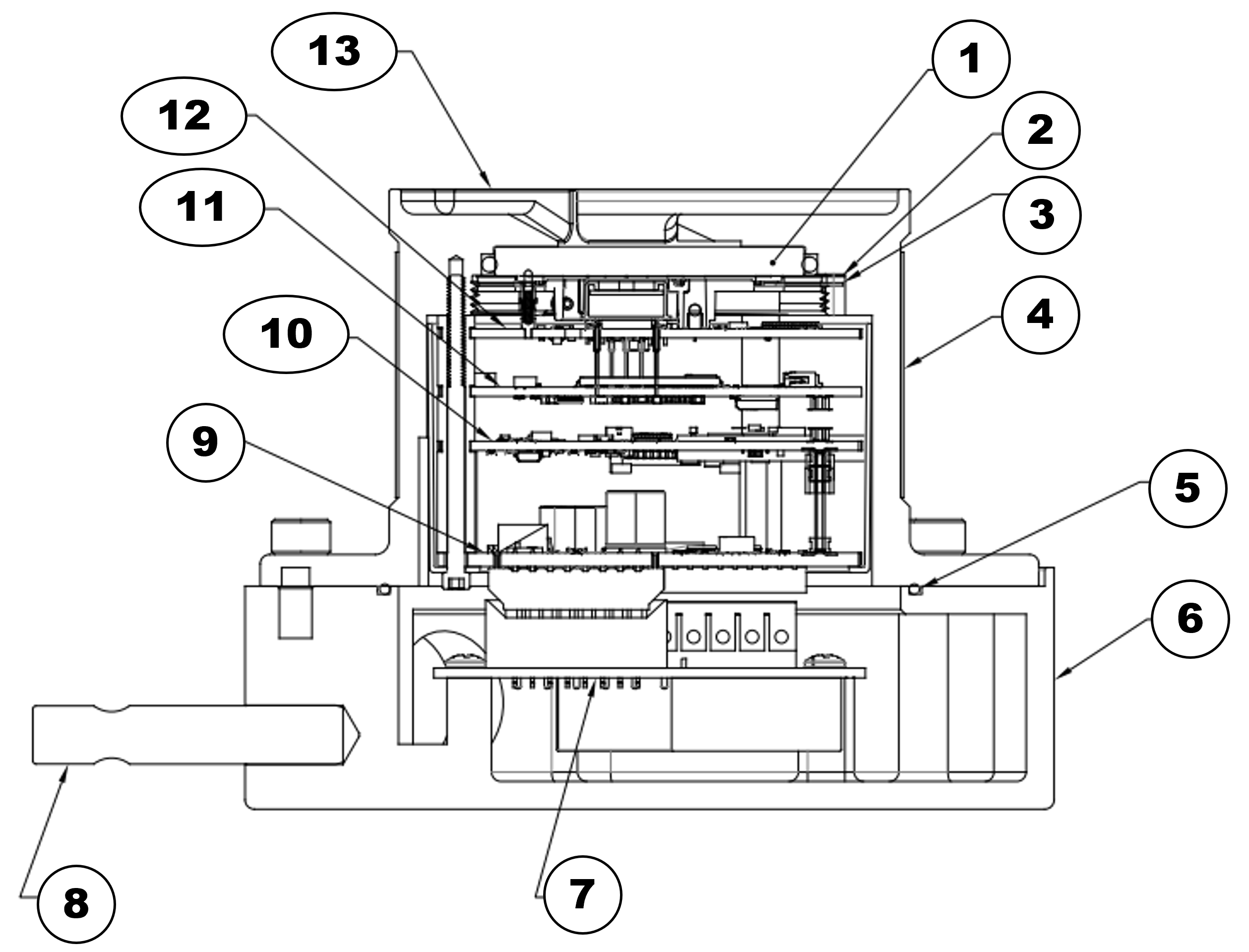

Figure 21 FL5000 Cross-Section View

1	Sapphire Window	8	Mounting Pin
2	EMI Screen	9	Modular Power Board
3	Heater Ring Board	10	Modular Communication Board
4	Label	11	Modular Processor Board
5	O-Ring	12	Analog Board
6	Base Housing	13	Optical Housing Assembly
7	Field Wiring Board
