Cradle Charger Installation

For mounting the cradle charger, there are two options. There is a set of four slots on the bottom of the unit to install onto horizontal surfaces. There is also a set of one hole and one slot on the back of the cradle charger for mounting on vertical surfaces. Any fastener used on the top hole must not secure the strap, but go through the hole in the strap. Utilize the slot first when mounting onto a vertical surface, and then the hole. See below figures for mounting options.

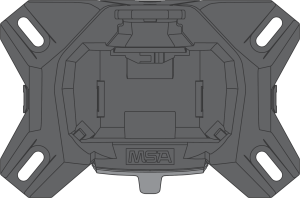

Horizontal Surface Mounting

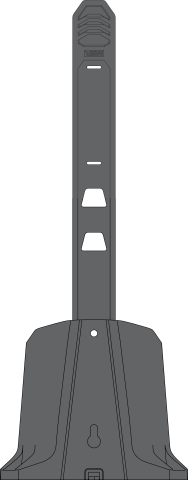

Vertical Surface Mounting

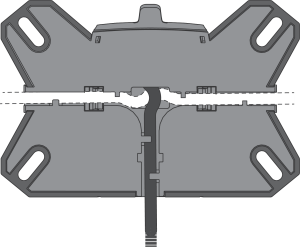

For routing the charging cable, there are three options. Wire guiding channels are provided on the bottom of the cradle charger, see Figure below.
