Package Contents
The device will be delivered with the following items in the shipping carton:
|
•
|
PrimaX IR+ Gas Detector
or
PrimaX IR+ Display Housing and PrimaX IR Sensor
or
PrimaX IR+ Display Housing (Aluminum or 316 Stainless Steel) and PrimaX IR Sensor (316 Stainless Steel) |
|
•
|
This instruction manual, HART specification and installation drawing |

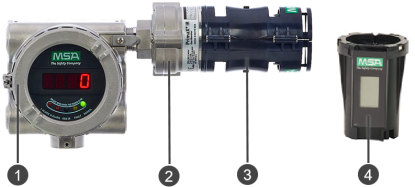

Figure 2 Overview
| 1 |
Housing (aluminum or stainless) |
3 |
Environmental guard |
| 2 |
Sensor (316 stainless steel) |
4 |
Calibration cap (optional) |
Accessories to be used with this product may be packaged separately. Check the enclosed shipping papers to identify all PrimaX IR+ accessories that have been ordered.
Accessories available for the PrimaX IR+ Gas Monitor include:
|
•
|
Optional calibration cap for calibration operations |
|
•
|
Optional tether strap for environmental guard |
|
•
|
Optional IR-Control remote controller |
For complete list of accessories see chapter Ordering Information.
The device will be labeled with the information shown below:
|
•
|
Target gas, calibration gas and span value |
|
•
|
Serial number and date of manufacture |
|
•
|
Area classification markings |
