Cause and Effect

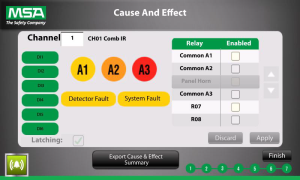

1. Tap the Channel textbox to select a channel.
2. You can add one or more causes to each channel. Select the digital inputs, alarm icons, Detector Fault, or System Fault to add it as a cause. You must select Apply for each selected cause.
3. Select Enabled for the relay(s) that will be the effect of the cause.
4. Tap Apply.
5. Repeat the previous steps for all cause and effect relationships you need for each channel.
6. Tap Finish.

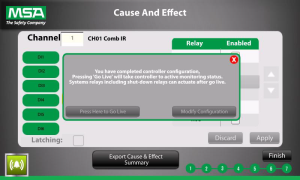

7. Tap Press Here to Go Live to complete the SmartStart configuration wizard.

—or—

Tap Modify Configuration to go back to the Detector Identifications screen and modify any necessary items of the configuration.
