Relays

1. Choose whether to perform fast relay assignment.

NOTE: Use this function if it is desired to automatically assign detector alarms to relays. The user can select Separate or Common relay strategy for automatic assignment. Separate strategy assigns a separate relay to every alarm. Common strategy assigns one relay to each level of alarm across devices.

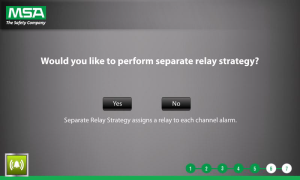

2. If performing fast relay assignment, choose whether to perform separate relay assignment.

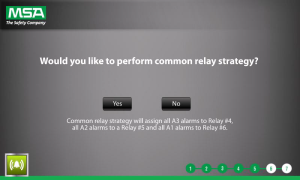

3. If performing fast relay assignment but not performing separate relay assignment, choose whether to perform common relay assignment.

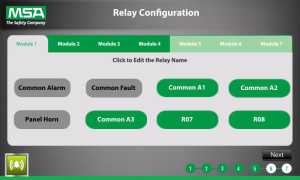

4. Select the desired module tab to view its relays.

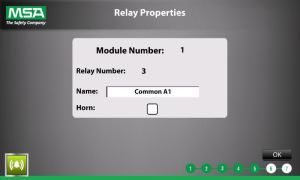

5. Tap a relay to edit it.

NOTE: Relays with a grey background cannot be edited.
6. Tap the Name textbox to rename the relay.
7. Select the Horn checkbox, as needed.
8. Tap OK.
9. Repeat steps 1-5 as needed.

10. Tap Next to proceed to the Voting Zones configuration.

NOTE: You cannot go back in the process once you tap Next.
