Appendix: Modbus RTU Protocol Operation
Connection to X5000 transmitter:

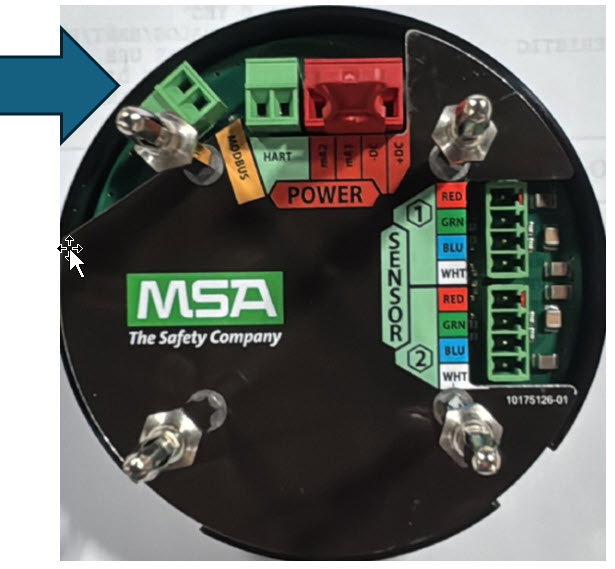

| • | The 2-Wire RS485 connection terminal is shown to the left of the HART connection |
| • | Connection wire must be Low Capacitance, Shielded data cable, 100-120 Ohm impedance. 1000 feet or 300 meters maximum distance. |
Baud Rate
The baud rate is selectable via the Modbus Communications Interface. The selectable baud rates are as follows:
Table 16 Baud Rate
| User Select | Baud Rates |
|---|---|
| 0 | 2400 bits per second |
| 1 | 4800 bits per second |
| 2 | 9600 bits per second |
| 3 | 19200 bits per second |
| 4 | 38400 bits per second |
| 5 | 115200 bits per second |
Data Format
The data format is selectable via the Modbus Communications Interface. The selectable data formats are as follows:
Table 17 Data Format
| User Select | Data Bits | Parity | Stop Bit | Format |
|---|---|---|---|---|
| 0 | 8 | None | 1 | 8-N-1 |
| 1 | 8 | Even | 1 | 8-E-1 |
| 2 | 8 | Odd | 1 | 8-O-1 |
| 3 | 8 | None | 2 | 8-N-2 |
Consult Modbus Manual (PN: MANS5000M) for Modbus RTU protocol configuration.
