V-TEC EDGE Tieback Fall Clearance Charts

8 ft V-TEC EDGE Cable Tieback PFL: 8 ft / 2.4 m Lifeline + 2 ft / 0.6 m (Total Length: 10 ft / 3 m) *

* Tieback Section = 3 ft / 0.9 m

V-TEC EDGE Cable Tieback Single PFL V-TEC EDGE Cable Tieback Twin PFL

Product: V-TEC EDGE Cable Tieback PFL

Use: Leading edge applications

Capacity: ≤ 310 lbs (141 kg)

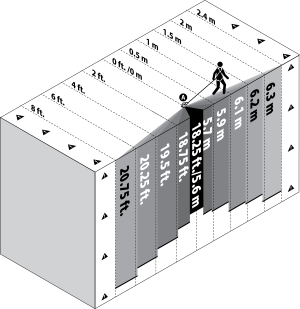

(A) Clearance values shown are based on 2 ft (0.6 m) anchorage setback from the leading edge. Anchorage connector may be used at setback distance of 2 ft (0.6 m) from the leading edge or as far back as required. For every 1 ft (0.3 m) the anchorage location is set back from the initial 2 ft (0.6 m) setback, the user can subtract 0.5 ft (0.15 m) from the clearance provided in the chart based on the user's offset distance.

If the V-TEC EDGE Tieback PFL is anchored around a structural member that has been suitably identified by a qualified person, the initial setback of 2 ft (0.6 m) may be reduced by an amount equal to the circumference of the object, up to 2 ft (0.6 m).

NOTE: Clearance chart anchorage location for illustrative purposes only.

ILLUSTRATION NOT TO SCALE

WARNING!

In leading edge applications without setback, ensure that setup does not allow snaphook to contact leading edge in the event of a fall.

Failure to follow this warning can result in serious personal injury or death.

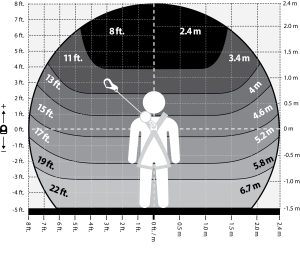

Product: V-TEC EDGE Cable Tieback PFL

Use: Non-leading edge applications

Capacity: ≤ 310 lbs (141 kg)

NOTE: If the V-TEC EDGE Tieback PFL is anchored around a structural member that has been suitably identified by a qualified person. It may be possible to reduce the fall clearance by an amount equal to the circumference of the structural member up to 2 ft (0.6m) at specific anchorage locations. A qualified person should be consulted before reducing the clearance.

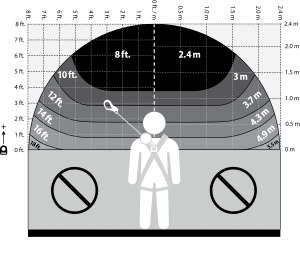

Product: V-TEC EDGE Cable Tieback PFL

Use: Non-leading edge applications

Capacity: ≥ 310 lb (141 kg) and ≤ 400 lbs (181 kg)

NOTE: If the V-TEC EDGE Tieback PFL is anchored around a structural member that has been suitably identified by a qualified person. It may be possible to reduce the fall clearance by an amount equal to the circumference of the structural member up to 2 ft (0.6m) at specific anchorage locations. A qualified person should be consulted before reducing the clearance.





























8 ft V-TEC EDGE Web Tieback PFL: 8 ft / 2.4 m Lifeline + 2 ft / 0.6 m (Total Length: 10 ft / 3 m) *

* Tieback Section = 3 ft / 0.9 m

V-TEC EDGE Web Tieback Single PFL V-TEC EDGE Web Tieback Twin PFL

Product: V-TEC EDGE Web Tieback PFL

Use: Leading edge applications

Capacity: ≤ 310 lbs (141 kg)

(A) Clearance values shown are based on 2 ft (0.6 m) anchorage setback from the leading edge. Anchorage connector may be used at setback distance of 2 ft (0.6 m) from the leading edge or as far back as required. For every 1 ft (0.3 m) the anchorage location is set back from the initial 2 ft (0.6 m) setback, the user can subtract 0.5 ft (0.15 m) from the clearance provided in the chart based on the user's offset distance.

If the V-TEC EDGE Tieback PFL is anchored around a structural member that has been suitably identified by a qualified person, the initial setback of 2 ft (0.6 m) may be reduced by an amount equal to the circumference of the object, up to 2 ft (0.6 m).

NOTE: Clearance chart anchorage location for illustrative purposes only.

ILLUSTRATION NOT TO SCALE

WARNING!

In leading edge applications without setback, ensure that setup does not allow snaphook to contact leading edge in the event of a fall.

Failure to follow this warning can result in serious personal injury or death.



Product: V-TEC EDGE Web Tieback PFL

Use: Non-leading edge applications

Capacity: ≤ 310 lbs (141 kg)

NOTE: If the V-TEC EDGE Tieback PFL is anchored around a structural member that has been suitably identified by a qualified person. It may be possible to reduce the fall clearance by an amount equal to the circumference of the structural member up to 2 ft (0.6m) at specific anchorage locations. A qualified person should be consulted before reducing the clearance.

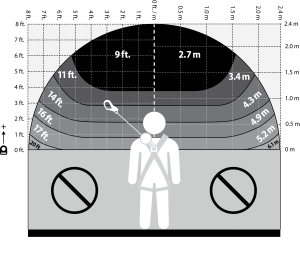

Product: V-TEC EDGE Web Tieback PFL

Use: Non-leading edge applications

Capacity: ≥ 310 lb (141 kg) and ≤ 400 lbs (181 kg)

NOTE: If the V-TEC EDGE Tieback PFL is anchored around a structural member that has been suitably identified by a qualified person. It may be possible to reduce the fall clearance by an amount equal to the circumference of the structural member up to 2 ft (0.6m) at specific anchorage locations. A qualified person should be consulted before reducing the clearance.
