Fall Clearance Charts
ANSI/OSHA/CSA
V-TEC Fall Clearance Charts (6 ft / 1.8 m Web) |
|

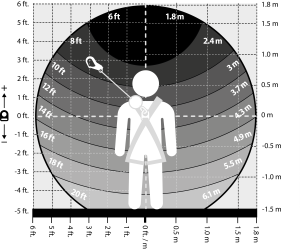

| 1.8 m V-TEC Web PFL: 6 ft / 1.8 m | |
| V-TEC Single PFL | V-TEC Twin PFL |
|
|
|

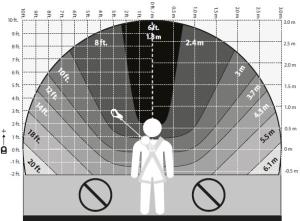

Product: 6 ft / 1.8 m V-TEC Web PFL Use: Non-leading edge applications Capacity: ≤ 310 lbs (140 kg) NOTE: OSHA limits free fall to 2 ft (0.6 m) or less. |
|
|

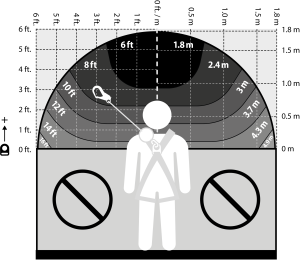

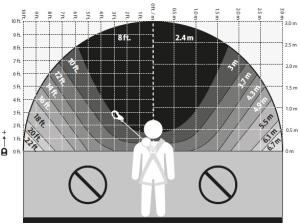

Product: 6 ft / 1.8 m V-TEC Web PFL Use: Non-leading edge applications Capacity: ≤ 400 lbs (180 kg) NOTE: OSHA limits free fall to 2 ft (0.6 m) or less. |
|
V-TEC Tieback Fall Clearance Charts (6 ft / 1.8 m Web) |
|

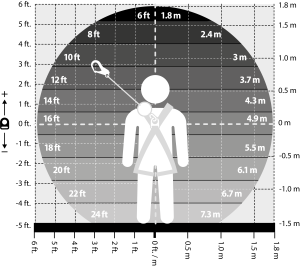

| 1.8 m V-TEC Tieback Web PFL: 6 ft / 1.8 m Lifeline + 0.9 m / 3 ft Tieback (Total Length: 2.7 m / 9 ft) |
|

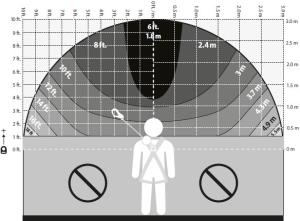

Product: 6 ft / 1.8 m V-TEC Tieback Web PFL Use: Non-leading edge applications Capacity: ≤ 310 lbs (140 kg) NOTE: OSHA limits free fall to 2 ft (0.6 m) or less. |
|
|

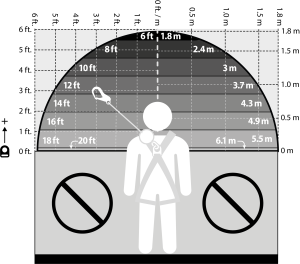

Product: 6 ft / 1.8 m V-TEC Tieback Web PFL Use: Non-leading edge applications Capacity: ≤ 400 lbs (180 kg) NOTE: OSHA limits free fall to 2 ft (0.6 m) or less. |
|
Notice
If the V-TEC Tieback PFL is anchored around a structural member that has been suitably identified by a qualified person, it may be possible to reduce the fall clearance by an amount equal to the circumference of the structural member up to 2 ft (0.6 m) at the specific anchorage locations. A qualified person should be consulted before reducing the clearance.
V-TEC Fall Clearance Charts (10 ft / 3 m Web) |
|
| 3 m V-TEC Web PFL: 10 ft / 3 m |
|
Product: 10 ft / 3 m V-TEC Web PFL Use: Non-leading edge applications Capacity: ≤ 310 lbs (140 kg) NOTE: OSHA limits free fall to 2 ft (0.6 m) or less. |
|
|

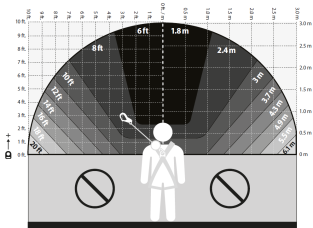

Product: 10 ft / 3 m V-TEC Web PFL Use: Non-leading edge applications Capacity: ≤ 400 lbs (180 kg) NOTE: OSHA limits free fall to 2 ft (0.6 m) or less. |
|
V-TEC Tieback Fall Clearance Charts (10 ft / 3 m Web) |
|
| 3 m V-TEC Tieback Web PFL: 10 ft / 3 m Lifeline + 0.9 m / 3 ft Tieback (Total Length: 3.9 m / 13 ft) |
|
Product: 10 ft / 3 m V-TEC Tieback Web PFL Use: Non-leading edge applications Capacity: ≤ 310 lbs (140 kg) NOTE: OSHA limits free fall to 2 ft (0.6 m) or less. |
|
Notice
If the V-TEC Tieback PFL is anchored around a structural member that has been suitably identified by a qualified person, it may be possible to reduce the fall clearance by an amount equal to the circumference of the structural member up to 2 ft (0.6 m) at the specific anchorage locations. A qualified person should be consulted before reducing the clearance.
V-TEC Fall Clearance Charts (10 ft / 3 m Cable) |
|
| 3 m V-TEC Cable PFL: 10 ft / 3 m |
|
Product: 10 ft / 3 m V-TEC Galvanized and Stainless Steel Cable PFL Use: Non-leading edge applications Capacity: ≤ 310 lbs (140 kg) NOTE: OSHA limits free fall to 2 ft (0.6 m) or less. |
|
|
Product: 10 ft / 3 m V-TEC Galvanized Steel Cable PFL Use: Non-leading edge applications Capacity: ≤ 400 lbs (180 kg) - excludes PFLs with Stainless Steel cable. NOTE: OSHA limits free fall to 2 ft (0.6 m) or less. |
|
V-TEC Fall Clearance Charts (6.5 ft / 2 m Arc-Flash) |
|
| 2 m V-TEC Arc-Flash PFL: 6.56 ft / 2 m |
|
Product: 6.5 ft / 2 m V-TEC Arc-Flash PFL Use: Non-leading edge applications Capacity: ≤ 310 lbs (140 kg) NOTE: OSHA limits free fall to 2 ft (0.6 m) or less. |
|
|

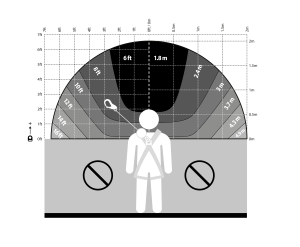

Product: 6.5 ft / 2 m V-TEC Arc-Flash PFL Use: Non-leading edge applications Capacity: ≤ 400 lbs (180 kg) NOTE: OSHA limits free fall to 2 ft (0.6 m) or less. |
|
Notice
If the V-TEC Tieback PFL is anchored around a structural member that has been suitably identified by a qualified person, it may be possible to reduce the fall clearance by an amount equal to the circumference of the structural member up to 2 ft (0.6 m) at the specific anchorage locations. A qualified person should be consulted before reducing the clearance.
EN
| 1.8 m V-TEC PFL: 6 ft / 1.8 m |
| V-TEC Single Web PFL |
|
Product: 6 ft / 1.8 m V-TEC Web PFL Use: Non-leading edge applications Capacity: ≤ 310 lbs (140 kg) |
|
| 3 m V-TEC PFL: 10 ft / 3 m |
| V-TEC Single Web PFL |
|
Product: 10 ft / 3 m V-TEC Web PFL Use: Non-leading edge applications Capacity: ≤ 310 lbs (140 kg) |
|
ABNT/IRAM
| 1.8 m V-TEC Web PFL: 6 ft / 1.8 m |
|
Product: 6 ft / 1.8 m V-TEC Web PFL Use: Non-leading edge applications Capacity: ≤ 310 lbs (140 kg) |
|
| 3 m V-TEC Web PFL: 10 ft / 3 m |
|
Product: 10 ft / 3 m V-TEC Web PFL Use: Non-leading edge applications Capacity: ≤ 310 lbs (140 kg) |
|
| 2 m V-TEC Arc Flash PFL: 6.56 ft / 2 m |
|
Product: 6.56 ft / 2 m V-TEC Arc-Flash PFL Use: Non-leading edge applications Capacity: ≤ 310 lbs (140 kg) |
|
GB
| 1.8 m V-TEC Web PFL: 6 ft /1.8 m |
|
Product: 6 ft / 1.8 m V-TEC Web PFL Use: Non-leading edge applications Capacity: ≤ 310 lbs (140 kg) |
|
| 3 m V-TEC Web PFL: 10 ft / 3 m |
|
Product: 10 ft / 3 m V-TEC Web PFL Use: Non-leading edge applications Capacity: ≤ 310 lbs (140 kg) |
|
