Labels and Icons

ANSI / OSHA / CSA ABNT / IRAM

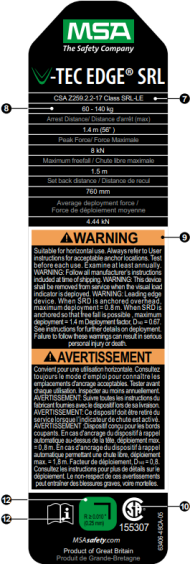

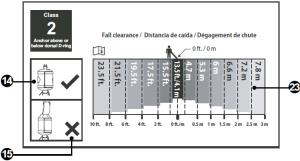

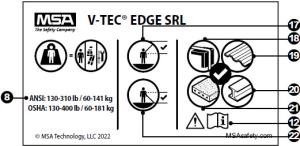

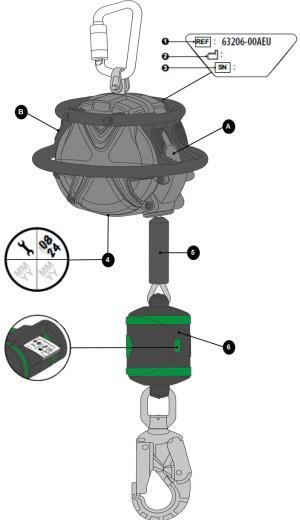

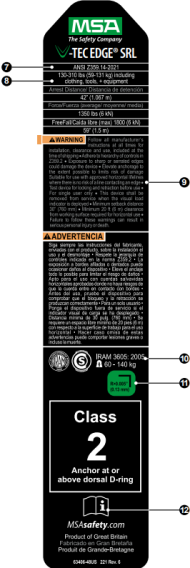

Table 5 V-TEC EDGE Product Marking

A	Case Label Location(ANSI / OSHA / CSA / IRAM)	12	Read User Instructions
B	Lifeline Label Location (Galvanised Steel)	13	Lifeline Construction
1	Model Number	14	Load Indicator
2	Date of Manufacture MM/YY	15	Do Not Use
3	Serial Number	16	Length
4	Date of Next Examination	17	Tie Off Above D-ring Permitted
5	Shock Tube	18	Tested For Use Over an Edge
6	Tear Webbing Case	19	Tested For Use Over Corrugated Steel Edge
7	Standard	20	Tested For Use Over Steel Edge
8	Capacity	21	Tested For Use Over Concrete Edge
9	Product Warning	22	Tie Off Below D-ring Permitted
10	Notified Body Number	23	Fall Clearance Chart
11	Acceptable Edge Type

Labels and Icons

EN

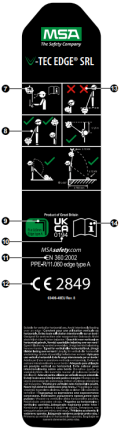

Table 6 V-TEC EDGE Product Marking

A	Case Label Location (EN)	12	Notified Body Number
B	Lifeline Label Location (Galvanised Steel)	13	Do Not Use
1	Model Number	14	Read User Instructions
2	Date of Manufacture MM/YY	15	Lifeline Construction
3	Serial Number	16	Capacity
4	Date of Next Examination	17	Load Indicator
5	Shock Tube	18	Length
6	Tear Webbing Case
7	Pre-Use Checks
8	Product Warning
9	Acceptable Edge Type
10	Approved Body Number
11	Standard

Labels and Icons

GB (China)

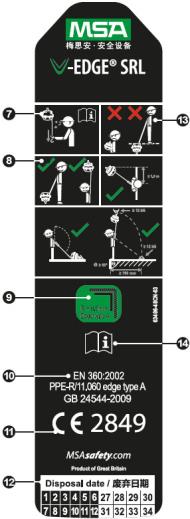

Table 7 V-TEC EDGE Product Marking

A	Case Label Location (GB)	12	Disposal Date
B	Lifeline Label Location (Galvanised Steel)	13	Do Not Use
1	Model Number	14	Read User Instructions
2	Date of Manufacture MM/YY	15	Lifeline Construction
3	Serial Number	16	Capacity
4	Date of Next Examination	17	Load Indicator
5	Shock Tube	18	Length
6	Tear Webbing Case
7	Pre-Use Checks
8	Product Warning
9	Acceptable Edge Type
10	Standard
11	Notified Body Number
