WinGrip A1X Product Information and Overview

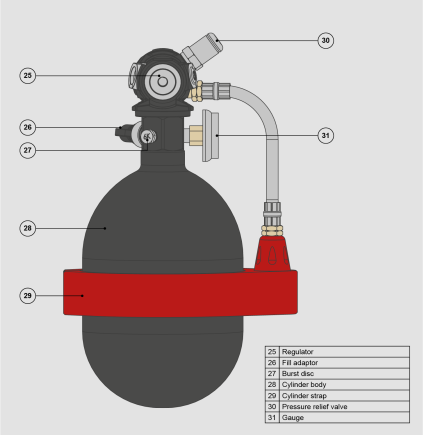

WinGrip A1X High pressure Cylinders

This is an Aluminium core with a black fibre glass gloss wrap. Regulator is also aluminium with a stainless-steel braided tube.

• Mass of assembly 1.8kg (4lbs) • Cylinders marked DOT-SP-11005 require hydrostatic testing every 3 years • Cylinders marked DOT-SP-14932 & ISO 11119-2 require hydrostatic testing every 5 years • Cylinder service life of 15 years • Maximum pressure 300bar (4350psi) • Maximum filling rate: 70 l/ min

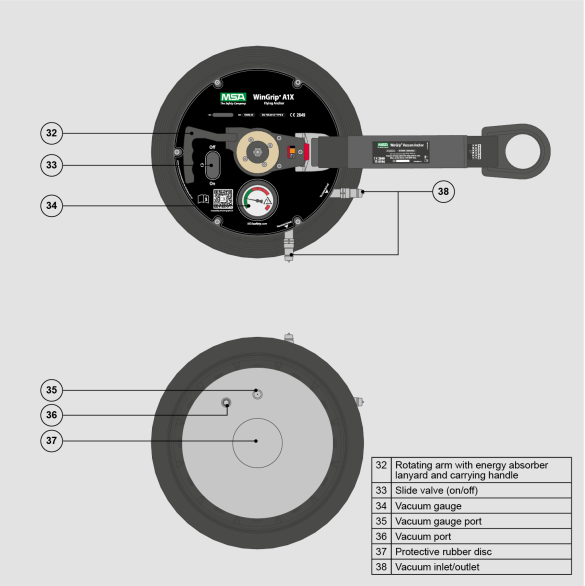

A1X Flying Vacuum Anchor

Used as a single point vacuum anchor in conjunction with the A1X. Connected to the A1X with a primary hose, vacuum is provided to the anchor from the A1X, once installed, the user whilst connected to a secure anchor can safely move on a working area must always be connected to a secure anchor before disconnecting.

Primary Vacuum Hose

Flexible reinforced 3.5 meter (11.5 ft) rubber tubing with quick release male and female connectors.

A1X Filling Adapter

The filling adaptor is used to connect to the male coupling on the cylinder and to a nitrogen hose from the trolley. This then depending on the capacity of the trolley re-fuel the cylinder up to a maximum of 4350 psi or 300 bar. MSA offers a variety of adapters suitable for different hose fittings. Please contact MSA for technical support.

Full Body Harness

WARNING!

To ensure safety in any situation where a fall hazard exists, the WinGrip A1X product must always be used together with a full-body harness.

Failure to follow this warning can result in serious personal injury or death.

A full body harness must be used to distribute fall arrest loads across the shoulders, upper thighs, chest and pelvis. Featuring a center back fall arrest attachment point (dorsal D-ring) for clipping to a fall arrest connector. When used in combination with energy absorber lanyards the harness can sustain the forces developed during a fall.

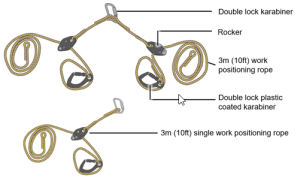

Single and Double Work Positioning Rope

Rope used to secure the user to an anchor attachment point. The double work positioning rope is primarily used when an end user will require to employ more than one attachment point.

WinGrip A1X Storage Case

The WinGrip A1X anchor and the flying anchor are sold as a kit in different configurations and stored in purpose built rugged cases, easy to store and to protect the equipment.
