Unit Identification

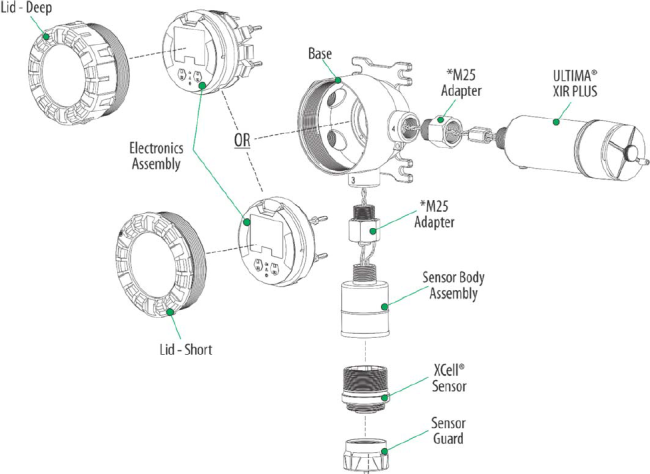

Component Overview

* Only used with M25 bases

Serial number is located where shown (highlighted in green on label below). Actual number of digits may be different.

Transmitter - Position of Labels

Board Stack - Position of Labels

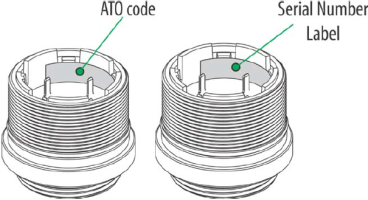

Digital Sensor - Position of Labels

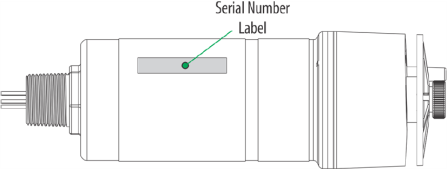

XIR Plus - Position of Labels

Label

Software information can be read using the display see user manual 10177361 for additional information.
